Shantui Construction Machinery 220HP Crawler Bulldozer SD22f for Logging, Lumbering

Color : Yellow

Engine : Weichai Wp10

Gearbox : Shantui

Crawler : Komatsu Technology

Blade Type : Straight Blade

Width of Track Shoe : 560mm

Back Ripper : Three Teeth Back Ripper

Dozing Capacity : 4.5m3

Operating Weight : 22000kg

Transport Package : Nude Packing

Trademark : SHANTUI

Supply Ability : 2000

Type : Universal Type

Transmission : Hydraulic - Mechanical Transmission

Walking Mode : Crawler

Load and Unload Method : Front Discharge

Engine Power : 147~515kw

Condition : New

Customization : Available | Customized Request

Contact Now

Product Description

Company Info.

Customer Question & Answer

Ask something for more details

(0)

Basic Info.

Color

Yellow

Engine

Weichai Wp10

Gearbox

Shantui

Crawler

Komatsu Technology

Blade Type

Straight Blade

Width of Track Shoe

560mm

Back Ripper

Three Teeth Back Ripper

Dozing Capacity

4.5m3

Operating Weight

22000kg

Transport Package

Nude Packing

Trademark

SHANTUI

Production Capacity

2000

Product Description

Shantui Construction Machinery 220hp Crawler bulldozer SD22F for logging, Lumbering

I.Main Specification

I . Engine
Brand: WEICHAI engine
Model: WD12G240E16
Type: Water cooled 4-cycle, in line, overhead valve direct injection, turbocharged diesel
Rated revolution:1800rpm
Rated power:162KW
Cylinder number-bore X stroke :6-139.7 x 152.4
Piston displacement :11.6L
Rnted fuel consumption: 205g/kw.h
Max.Torque:1030N.m/1250rpm

Gear	1st	2nd	3rd
Forward (km)	0-3.6	0-6.5	0-11.2
Reverse (km)	0-4.3	0-7.7	0-13.2

Dozer	Straight-tilt
Min. ground clearance(mm)	405
Weight(kg)	23450
Ground pressure(MP)	0.077
Min.turning radius(m)	3.3
Gradeability (°)	30
Track gauge(mm)	2000
Dozing capacity(m3)	6.4
Blade width(mm)	3725
Blade height(mm)	1315
Max.drop below ground (mm)	540
Max.tilt adjustment(mm)	> 735

II. POWER TRANSMITTING SYSTEM
Torque converter: torque converter, 3-element,1-stage,1-phase
Transmission: Planetary gear type, multi-disc cluth, hydraulically connected, forced lubrication
Main drive: Spiral bevel gear ,Single-stage speed reduction, Splash lubrication
Steering Clutch:Wet.multi-disc, spring loaded, hydraulic separated, hydraulic control
Steering brake:Wet,Floating, direct on-off hydraulic inter-linking operation
Final drive: 2-stage speed reduction of spur gear splash lubrication.

III . UNDERCARRING SYSTEM
Type: Swing type of sprayed beam, suspended structure of equalizer bar
Carrier rollers(each side): Two
Track rollers(each side): Six
Track type: assembled single tooth shoes
Width of track shoes:560mm
Pitch: 216mm
IV. HYDRAULIC SYSTEM
Max.pressure: 14MPa
Pump type: Gear pump
Discharge: 262L/min
Bore of working cylinder x number : 120mm x2 (double-acting type)
V. POWER TAKE OFF SHAFT
Location: At the middle of the back of steering case
Revolution: 1800rpm
VI. OVERALL DIMENSIONS
Length x Width x Height (mm): 6805 x 3725 x 3395

II.Company Information
Shantui series bulldozers include 12 horsepower grades, i.e. 520, 420, 320, 240, 230, 220, 200, 160, 130, 110, 100 and 80, and include variant products, such as standard type, wet-land type, super wet-land type, desert type, plateau type, coal bulldozing type, forest lumbering type and environmental sanitation type. Bulldozers of various models can be configured with any of the following ancillary devices, such as direct dumping blade, angle blade, U-shaped blade, environmental sanitation blade, air conditioning cab, anti-rolling cab, simple cab, tripe-teeth ripper, single-tooth ripper, winch and carry scraper. The bulldozers are mainly used to working conditions including airport, road, mine, dam, railway, etc.

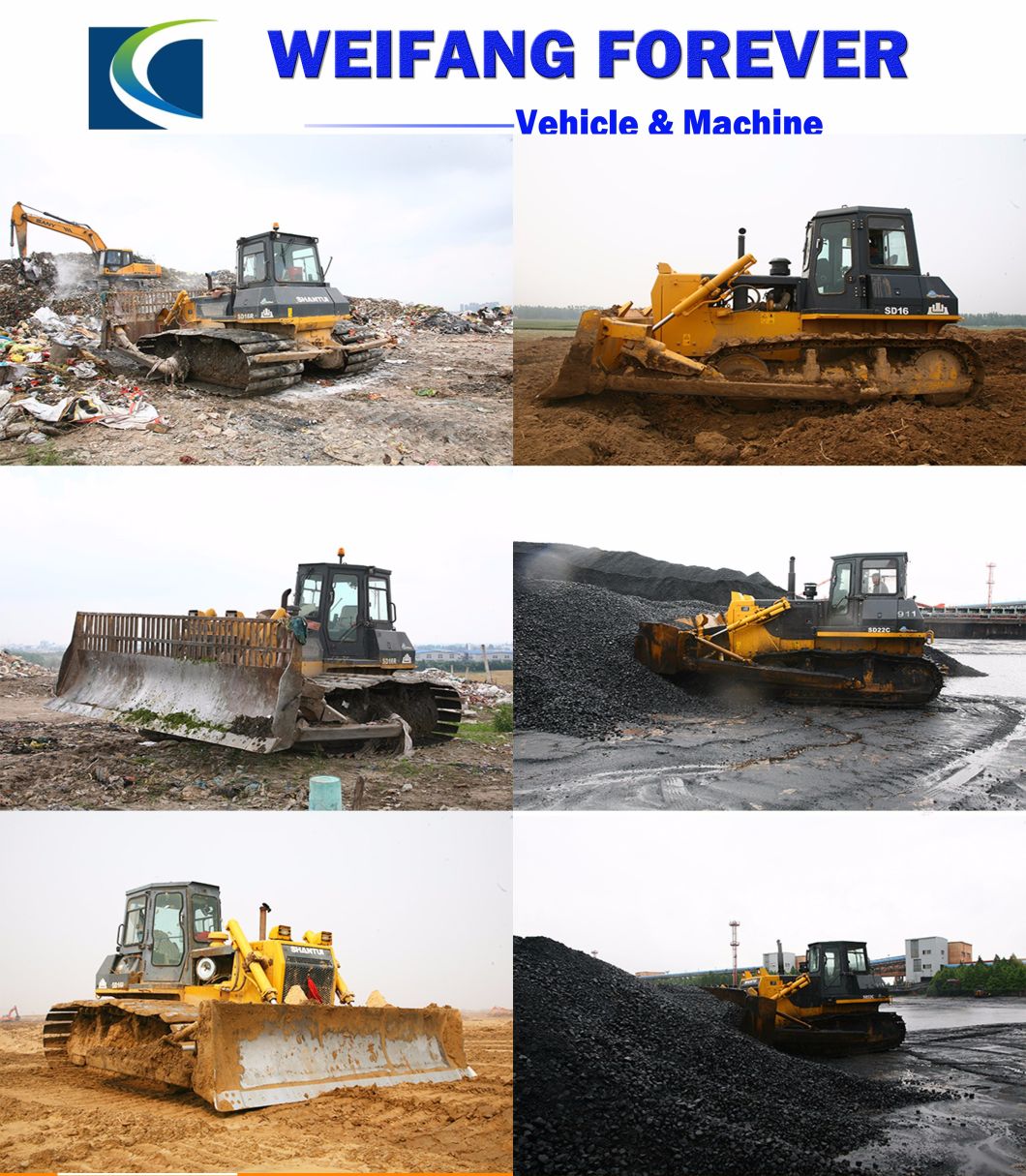

III.Bulldozer Working

IV Oversea Service
Service
1). Special design according to your special demand
2). Original spare parts order on line through our website freely
3). Complete technical instruction books help you to operate the machine and make maintenance easily.
4). On line and on site training or service. We welcome our dealers to send their engineers to China for annual service training. Meanwhile, we also send out our own engineers to foreign countries for train and service .
Shantui Construction Machinery 220HP Crawler Bulldozer SD22f for Logging, Lumbering

V.Social Responsibility

The road in the disaster area were destroyed seriously due to the earthquake, Our company will fitst time to start the contingency plans to support the disaster area.
Shantui Construction Machinery 220HP Crawler Bulldozer SD22f for Logging, Lumbering

VI. Packing

We usually choose the RO-RO vessel or the Bulk Cargo Vessel to transport our machine.

VII. DEALING PROCESS

1. You send us an inquiries on your desired trailer through our contact information.
2. We shall reply you in 12 hours after we received our inquiry.
3. We will negotiate the detail of the trailer on your requirement.
4. Confirmed on the tech data.
5. Sign contract.
6.30% down payment or LC issuing.
7. Production
8. The Manufacturig process with updated news.
9. The Production completement.
10.Balance payment .
11.Arrange Shipment and Custom Clearance

VIII. Original Spare Parts
We supply the original Spare Parts. With a complete after-sales service system, the After-market Division provides excellent service, and uses streamlined supply chain to provide rapid parts delivery.
